 LED POWER SUPPLY/SMPS

FEATURES

  • Seamless Aluminium Case, Fully Sealed IP 68 Waterproof
  • IP 54 Rainproof Transformer
  • IP 20 Non-Waterproof Transformer
  • 100 % Burn-in Test
  • Constant Voltage Output
  • High Reliability
  • Protection : Over Load/ Over Voltage / Short Circuit / Over Temperature
  • Easy Installation
  • CE, Rohs, TuV Certified

Please Contact us for more information about our products. More wattages also available.










TECHNICAL SPECIFICATIONS

POWERTEC ULTRA

Item No. Power Input Voltage Output Voltage IP RATING Size
LPS-12E30B 30 W 170-250 V AC 12 V DC, 2.5 A IP 68 170 X 32 X 22 MM

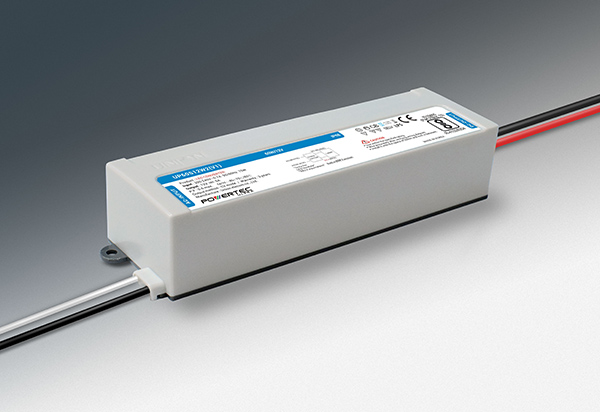

UP60S12W1 60 W 170-250 V AC 12 V DC, 5.0 A IP 68 170.5 X 42.5 X 38 MM

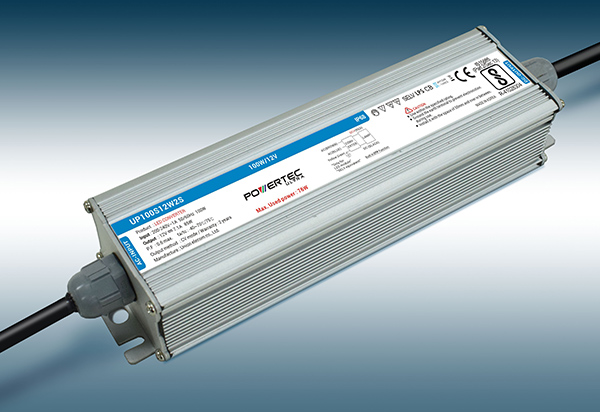

UP100S12W2S 100 W 180-264 V AC 12 V DC, 7.1 A IP 68 193 X 48.1 X 37.6 MM

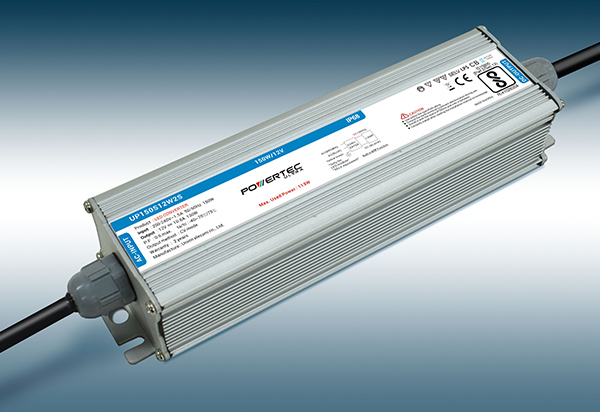

UP150S12W2S 150 W 180-264 V AC 12 V DC, 10.8 A IP 68 212 X 56.7 X 42.3 MM

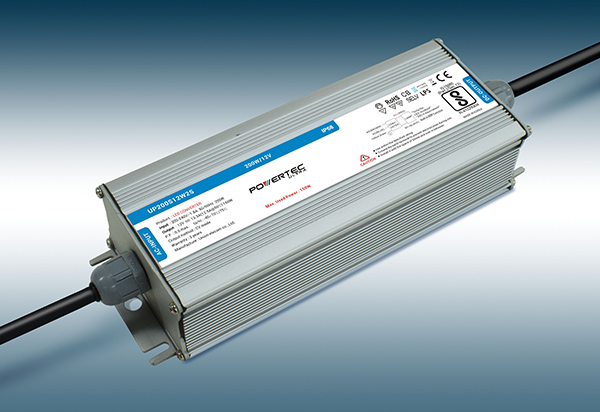

UP200S12W2S 200 W 180-264 V AC 12 V DC, 13.3 A IP 68 209 X 74 X 46.5 MM

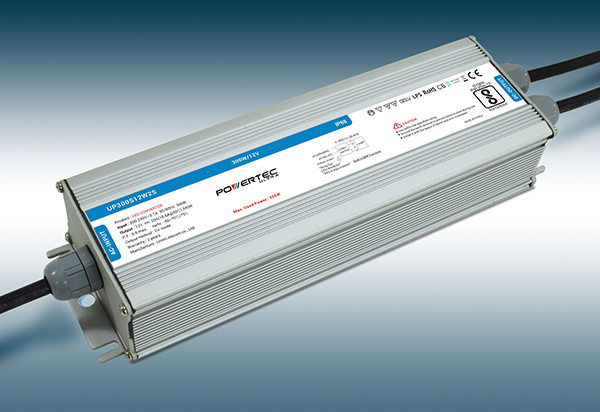

UP300S12W2S 300 W 180-264 V AC 12 V DC, 20.0 A IP 68 248 X 74 X 46.5 MM



ECOTRANS

Item No. Power Input Voltage Output Voltage Size
ETRP-12E 400 W 400 W 110-220 V AC 12 V DC, 33.3 A
ETRP-12E 300 W 300 W 110-220 V AC 12 V DC, 25.0 A
ETRP-12E 200 W 200 W 110-220 V AC 12 V DC, 16.6 A
ETRP-12E 150 W 150 W 110-220 V AC 12 V DC, 10.8 A
