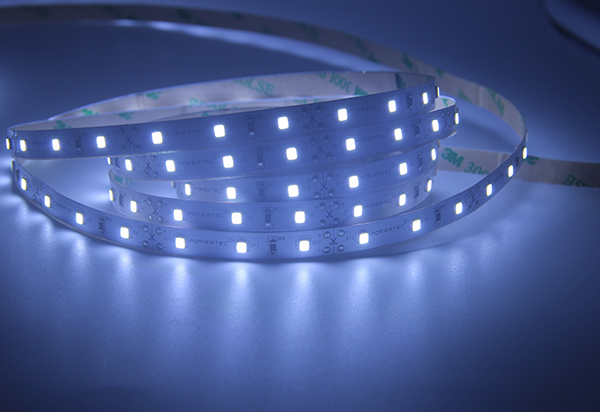

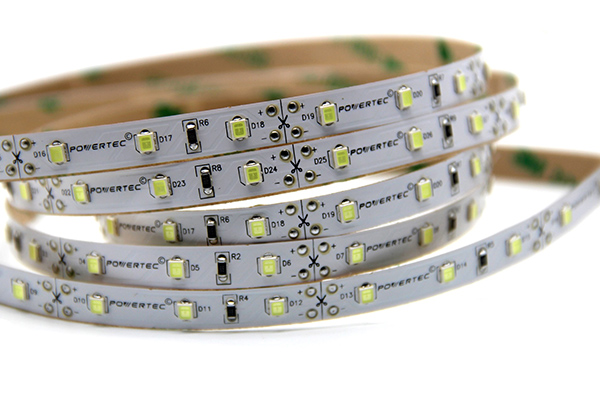

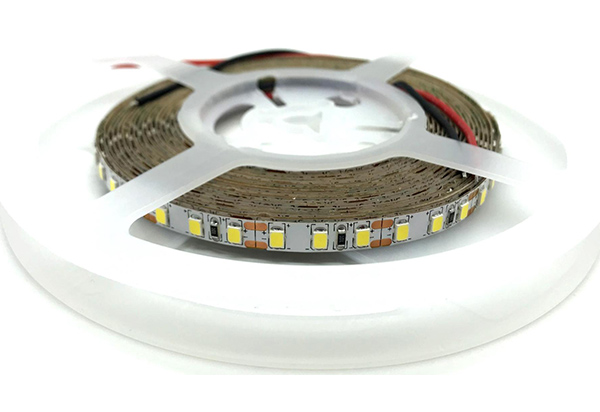

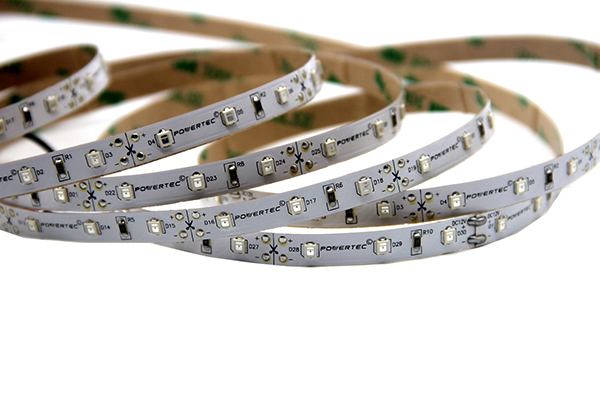

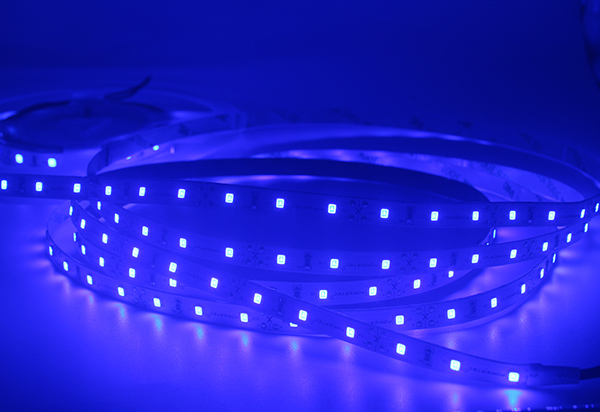

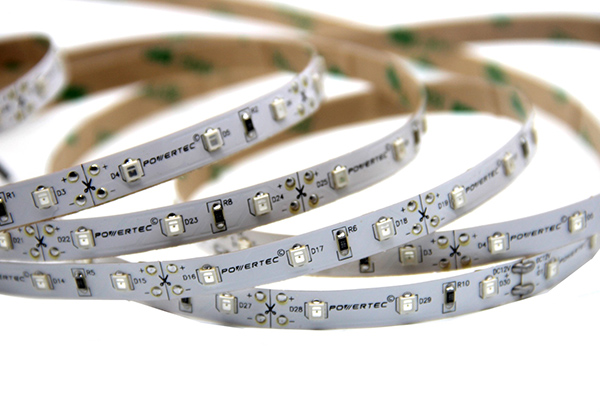

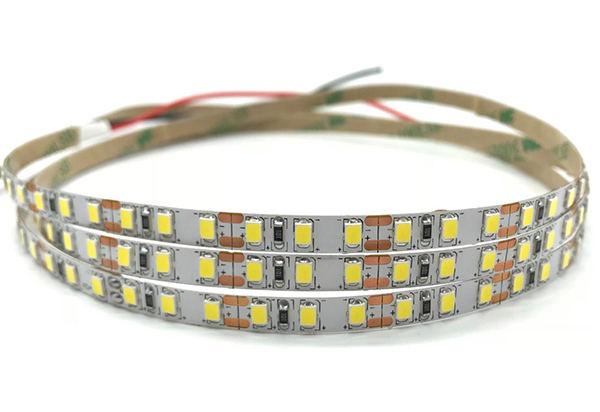

 LED FLEXIBLE STRIP LIGHT

FEATURES

  • Wide Viewing Angle – 120 ̊ to 160 ̊
  • Safe & Stable Operation With DC 12V
  • 220 V Rope Light with 50 Mtrs Reel
  • Easy Installation
  • 3 Yrs Warranty
  • CE, Rohs Certified

Please Contact us for more information about our products. More designs & wattages also available.









TECHNICAL SPECIFICATIONS

 LED Flexible Strip Lights

Model No. Power Chip Qty/Mtr PCB Width Lumens/Mtr Length Viewing Angle Colours CCT
UA 3528 WW-60 24 WATTS/5 Mtr Roll 60 8 MM 420 Lm – 480 Lm 5 Mtrs 120̊ Warm White 2,800 K – 3,000 K
UA3528DW-60 24WATTS/5 Mtr Roll 60 8 MM 420 Lm – 480Lm 5 Mtrs 120̊ Day White 4,000 K – 4,500 K
UA3528PW-60 24WATTS/5 Mtr Roll 60 8 MM 420 Lm – 480Lm 5 Mtrs 120̊ Pure White 5,000 K – 5,500 K
UA3528CW-60 24WATTS/5 Mtr Roll 60 8 MM 420 Lm – 480Lm 5 Mtrs 120̊ Cool White 9,500 K – 10,500 K
UA5050WW-60 72WATTS/5 Mtr Roll 60 10 MM 1440 Lm – 1560 Lm 5 Mtrs 120̊ Warm White 2,800 K – 3,000 K
UA5050PW-60 72WATTS/5 Mtr Roll 60 10 MM 1440 Lm – 1560 Lm 5 Mtrs 120̊ Pure White 5,000 K – 5,500 K
UA5050CW-60 72WATTS/5 Mtr Roll 60 10 MM 1440 Lm – 1560Lm 5 Mtrs 120̊ Cool White 9,500 K – 10,500 K
UA2835CW-60 36 WATTS/5 Mtr Roll 60 8 MM 1260 Lm – 1320 Lm 5 Mtrs 120̊ Cool White 24,000 K – 25,000 K

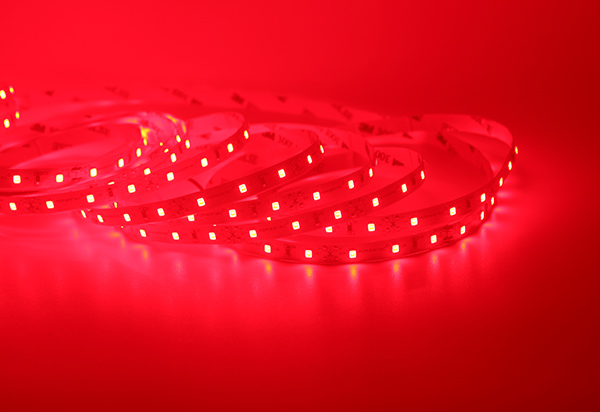

UA2835R-60 36 WATTS/5 Mtr Roll 60 8 MM 1260 Lm – 1320 Lm 5 Mtrs 120̊ Red 620-626 nm

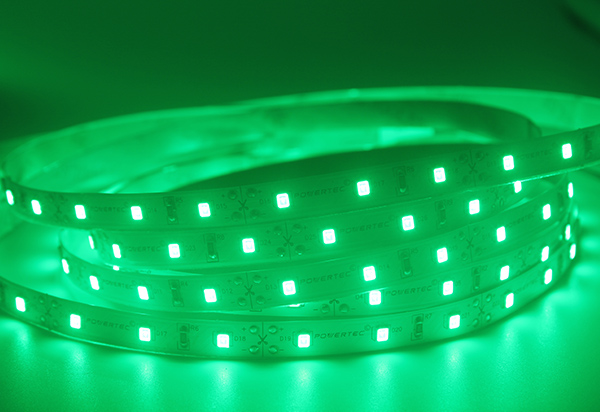

UA2835G-60 36 WATTS/5 Mtr Roll 60 8 MM 1260 Lm – 1320 Lm 5 Mtrs 120̊ Green 520 to 525 nm
UA2835B-60 36 WATTS/5 Mtr Roll 60 8 MM 1260 Lm – 1320 Lm 5 Mtrs 120̊ Blue 620-626 nm
UA2835DW-120 72 WATTS/5 Mtr Roll 120 6 MM 2520 Lm – 2640 Lm 5 Mtrs 120̊ Day White 4,000 K – 4,500 K
UA2835PW-120 72 WATTS/5 Mtr Roll 120 6 MM 2520 Lm – 2640 Lm 5 Mtrs 120̊ Pure White 5,000 K – 5,500 K
UA2835CW-120 72 WATTS/5 Mtr Roll 120 6 MM 2520 Lm – 2640 Lm 5 Mtrs 120̊ Cool White 24,000 K – 25,000 K
