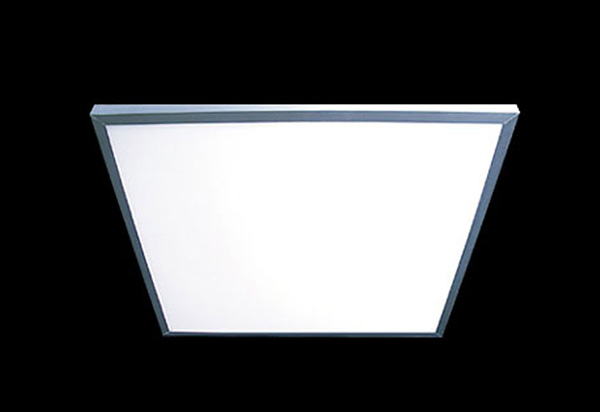

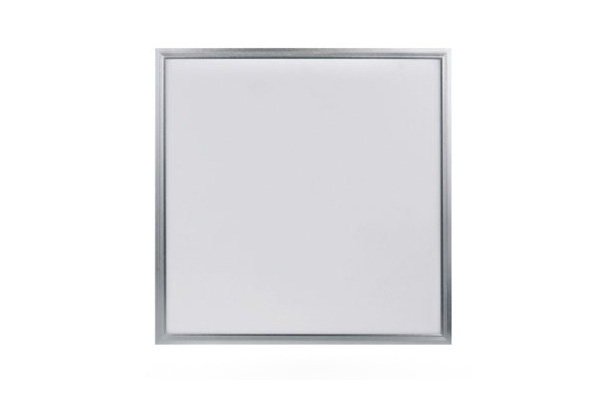

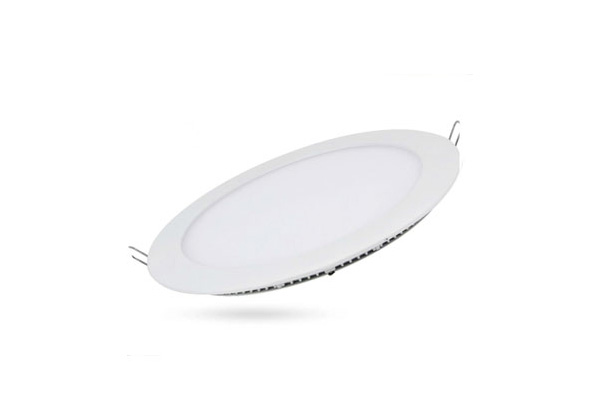

 LED PANEL LIGHT

FEATURES

  • Up to 50% energy savings
  • Full range of colour temperatures
  • Easy Installation
  • Low Heat Dissapation, giving you cooler indoor temperature

Please Contact us for more information about our products. More designs & wattages also available.








TECHNICAL SPECIFICATIONS

ECO SERIES

Item No. Power Lumens Size Beam Angle CCT
SK-PS09 9 W 630 LM 146 X 146 MM 160̊ 2700 K ~ 6,300 K
SK-PS12 12 W 840 LM 174 X 174 MM 160̊ 2700 K ~ 6,300 K
SK-PS18 18 W 1260 LM 225 X 225 MM 160̊ 2700 K ~ 6,300 K
SK-PR09 9 W 630 LM 146 MM 160̊ 2700 K ~ 6,300 K
SK-PR15 15 W 1050 LM 200 MM 160̊ 2700 K ~ 6,300 K
SK-PR18 18 W 1260 LM 225 MM 160̊ 2700 K ~ 6,300 K



SUPER SERIES

Item No. Power Lumens Size Beam Angle CCT
SK-P030324 24 W 1680 – 1920 LM 300 X 300 X 9 MM 120̊ 2700 K ~ 6,300 K
SK-P060636 36 W 2520 – 2880 LM 600 X 600 X 9 MM 120̊ 2700 K ~ 6,300 K
SK-P031236 36 W 2520 – 2880 LM 300 X 1200 X 11 MM 120̊ 2700 K ~ 6,300 K
SK-P061260 60 W 4200 – 4800 LM 600 X 1200 X 9 MM 120̊ 2700 K ~ 6,300 K
