 PP CORRUGATED SHEET/FLUTE BOARD

PRODUCT DESCRIPTION

PP Corrugated sheets are made of Polypropylene Copolymers. It is a hollow plastic sheet consisting of two parallel plates connected by vertical ribs. This material has been developed in the industry to build boxes and also suitable to produce inexpensive printed signs that resist outdoor conditions more than the paper or board signs. PP Corrugated Sheet are made of polypropylene-copolymer which meets environmental protection requirements. This material is environmental friendly and can be recycled.


KEY CHARACTERISTICS

  • High Strength
  • Cold resistance
  • Superior Safety and Protection from environment
  • Attractive Colors for Codification and Identification
  • Washable and can be wiped
  • Easy to fabricate or convert and same fabrication set up to fabricate
  • Sound and Thermal insulation
  • Non Corrosive
  • Chemically inert
  • Excellent edge crush
  • Excellent Puncture Strength
  • Excellent Compression Strength
  • Weather resistant
  • Can be UV stabilized
  • Can be Flame Retardant
  • Cushioning Protection
  • Waterproof and vermin proof and oil, grease chemical and moisture resistance
  • Excellent dimensional Stability
  • Odorless and nontoxic suitable for food contact
  • Corona treated surface suitable for printing and bonding

ADVANTAGES

  • Co-extruded sheets to meet various requirements at reasonable cost
  • Screen Printing of line jobs and multi-colour half tones
  • Sheets can be made available in any other brand customized colour
  • Lighter weight to any other printable media available
  • Boards are easy to fabricate. Can be cut by blade or scissors, creased, chained, stapled, pressed, riveted and punched to shape

PACKAGING APPLICATIONS

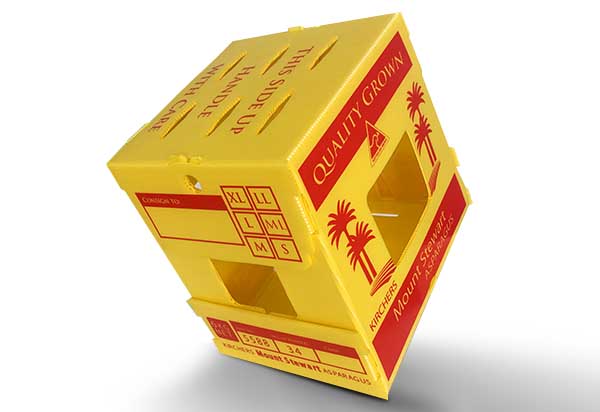

  • Portfolio Bags and Boxes
  • Cable Rim Coverage
  • Metal Sheet or Roll wrapping
  • Reusable Boxes for Automobile Spare Parts
  • Boxes for consumer durable and electronic equipment for avoiding breakage/damages
  • Defense arms and ammunition can be preserved safely in the boxes
  • Separator Plates for POY/PFY Textile Yarn
  • Houses for birds in Sanctuaries


SPECIFICATIONS

Physical Property Specification
Material of Construction Impact Co-polymer of Polypropylene
Standard Sheet size (L x W) 1220mmx2440mm, 1300mmx2900mm

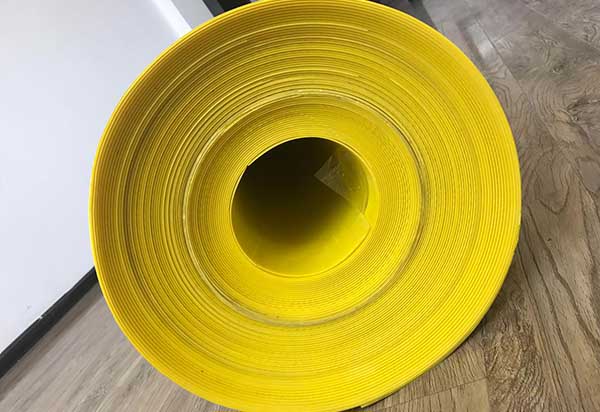

2000 mm width on request, also in Roll form
Thickness 2, 3, 4, 5, 6, 8 mm & 10mm
Heat Distortion Temperature 80° C
Corona Treatment Level 40 dynes/cm2 (minimum)
Thickness Tolerance +/- 10%
Weight Tolerance +/- 5%
Across length (L) tolerance is -0/+10 mm; across width (W) -0/+3 mm Sheets can be squared up to + 2mm by a separate operation.

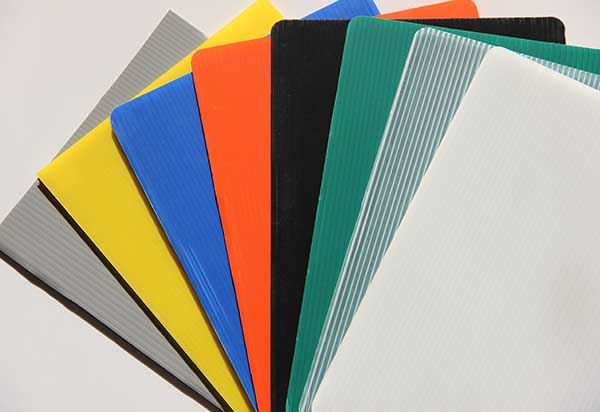

COLOURS & DENSITY RANGE

Thickness Colours Density Range in GSM
2 mm W, Y, R, B, G, Bk 350-450
3 mm W, Y, T, B, G, Bk, N 450-650
4 mm W, B, G, Bk, Y 600-750
5 mm W, B, G, Y 700-1000
6 mm W, B, G 900-1200
8 mm W,B,G,Bg 1500-1800
W-White, Y-Yellow, R-Red, B-Blue, G-Grey, Bk-Black, N-Natural, Bg-Beige


Special Grades
Antistatic For sensitive electronic components
Conductive For active electronic components
U.V.Stabilised For prolonged outdoor application
Fire Retardant For construction & interiors
SHEET IN ROLL FORM, SPECIAL LENGTHS, GRADES, COLOURS AND CUT TO SIZE CAN BE SUPPLIED ON REQUEST
